速差自控器
A speed difference self-controlling device is a device that can trigger locking and braking actions through speed changes when a fall occurs. We usually call it a fall arrester. As the name implies, its main function is to prevent falls. It is mainly used in high-altitude operation scenarios.
认证测试：
Certification test：
• GB 24544-2023
• EN 360:2002
说明：
Instructions：
•顶部挂点和底部安全钩均可360°自由旋转
• 黑色塑料外壳，性能与实用性兼具
• 圆角处理设计，降低搬运安全隐患；
• 便携提手，助力高效作业
• 底部双缓冲结构，降低回弹卡壳
• 底部安全钩设有坠落指示装置
• 360° Rotatable Top Hanging Point & Bottom Safety Hook
• Black Plastic Housing: Balancing Performance and Practicality
• Rounded Corners: Minimizes Handling Safety Risks

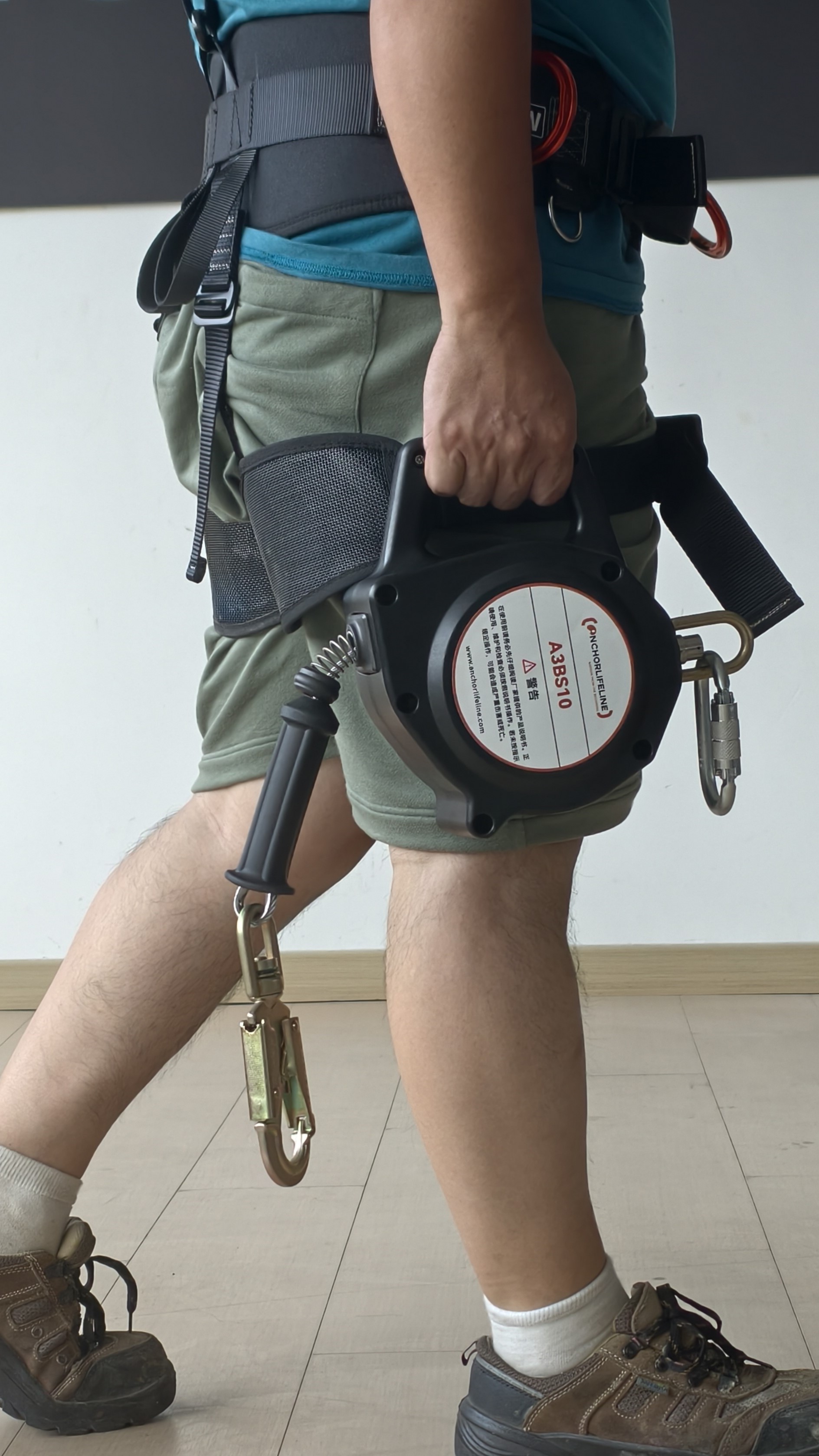

• Built-in Carry Handle: Ensures Efficient Operation
• Dual Bottom Buffers: Reduces Rebound & Prevents Jamming
• Fall Indicator Device Integrated into Bottom Safety Hook
规格：
Specifications:
|
产品名称 Product Name |
安克兰速差自控器 Self-retracting Device |
|
产品型号 Product Model |
A3BS10 |
|
产品编号 SerialNumber |
2506160005 |
|
产品颜色 Product Colour |
黑色 Black |
|
产品重量 Product Weight |
6.3kg |
|
承载人数 Loading Capacity |
1人 1 people |
|
最大制动距离 Maximum braking distance |
1372mm |
|
钢缆直径 Steel Cable Diameter |
8mm |
|
钢缆长度 Steel Cable Length |
10m |
|
整体尺寸(a*b*c/mm) Overall Dimension(a*b*c/mm) |
630x253x105mm(a*b*c/mm) |
|
平均制动力 Average braking force |
6kn |
|
有效周期 Product Validity Period |
5年（有条件） 5Years (Conditional) |
|
视频展示 Video Presentation |
|
技术信息 Technical Information |
认证证书（Certification Certificate）
产品图册（Product Catalog） 安克兰速差自控器A3BS10产品图册
产品说明书（Product Manual）
